Gebruikt

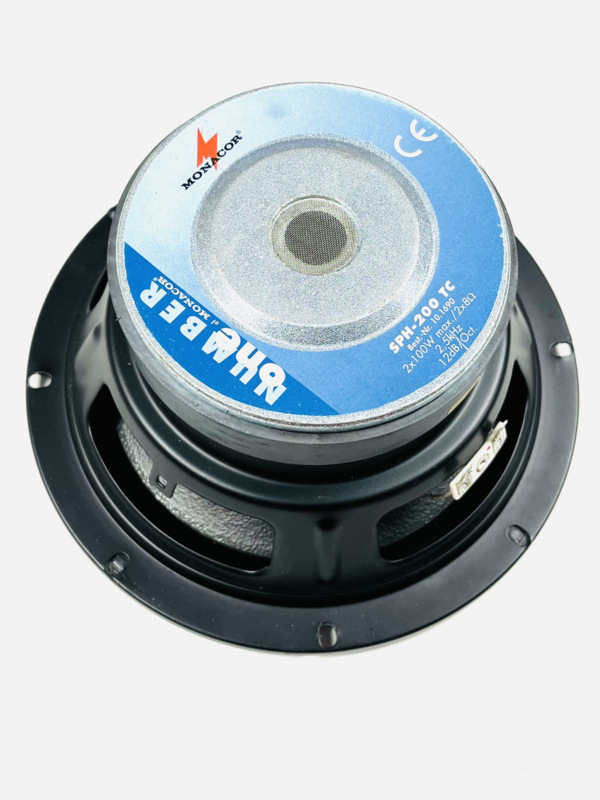

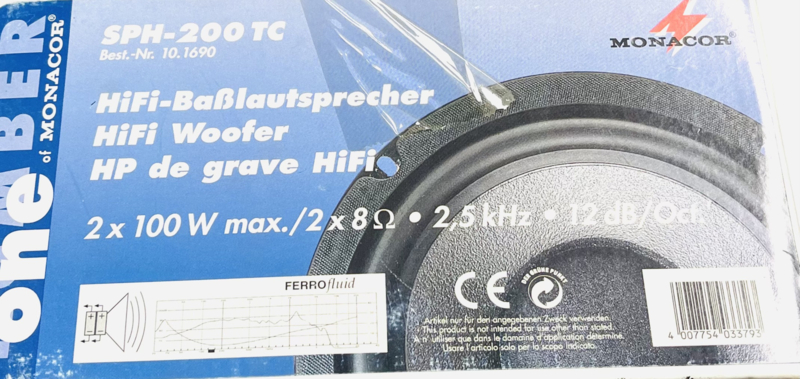

MONACOR SPH200TC dubbelspreekspoel
| 2 x 6.8 Ω/ 3.4 Ω | |
| Force factor (BxL) | 8.90 Tm |
| Voice coil induct. (Le) | 2 x 1.0 mH/ 1.0 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 3.75 mm |
| Eff. cone area (Sd) | 210 cm2 |
| Magnet weight | 840 g |
| Magnet diameter | Ø 120 mm |
| Mounting cutout | Ø 185 mm |
| Mounting depth | 93 mm |
| Mounting hole diameter | - |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |
| Dimensions | Ø 210 mm x 102 mm |
| Outside diameter | Ø 210 mm |
| Width | Ø 210 mm |
| Height | - |
| Depth | 102 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.6 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
let op gebruikt speakers kan niet ruilen of retour sturen
(STELLING 1.)
