New Old stock

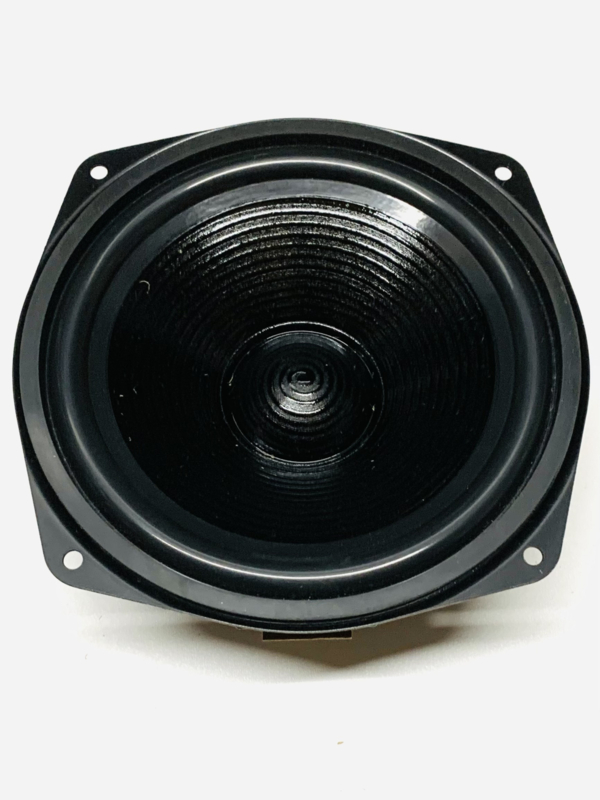

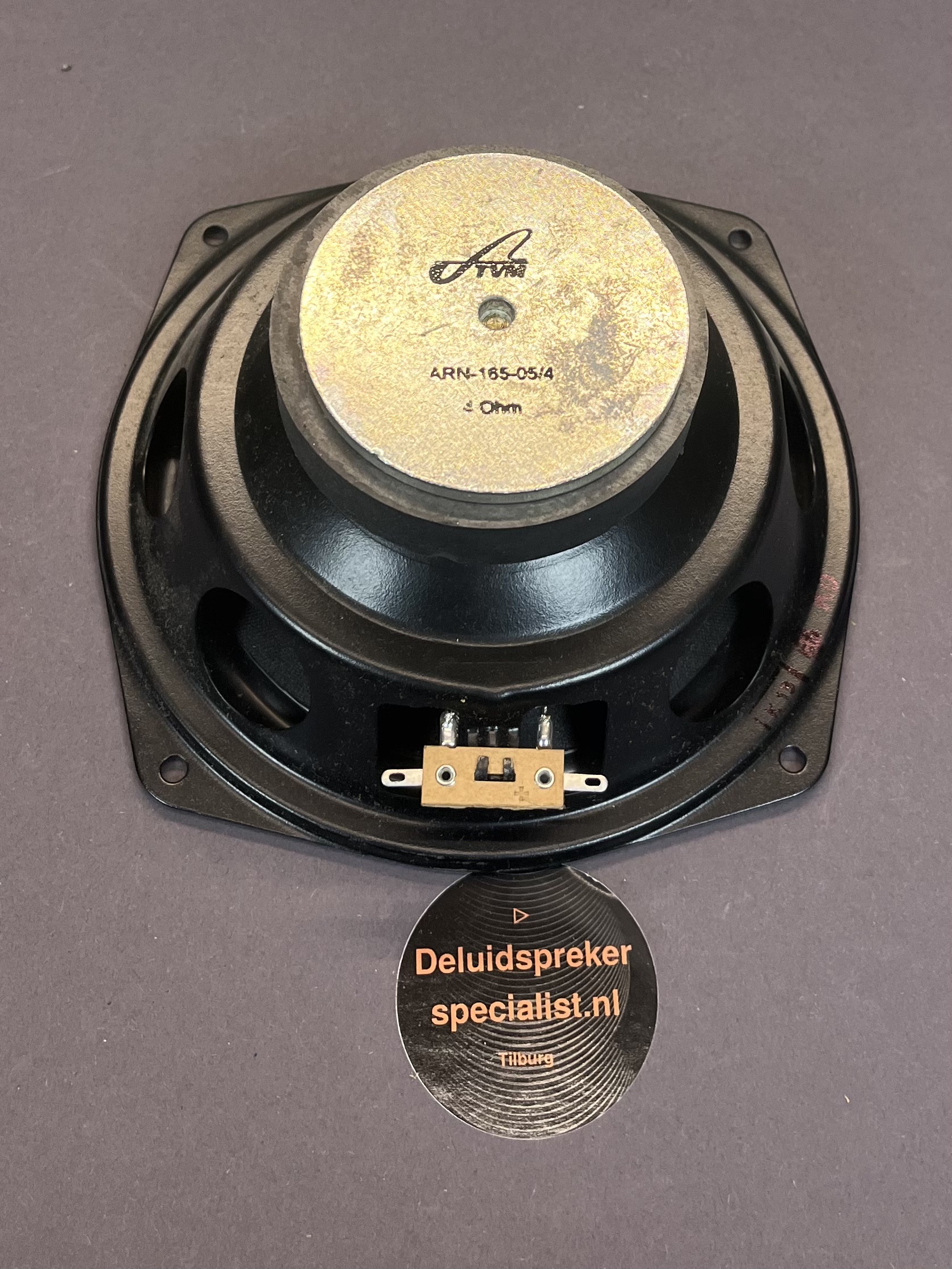

TVM ARN-165-05/4
ACOUSTICAL DATA Rated noise power 1) 60 W Short term maximum power 2) 180 W Rated impedance 4 Ohm Resonance frequency Fs 4) 44.000 Hz Rated frequency range 40-4000 Hz Sensitivity 3) 85 dB TS PARAMETERS Acquired by MLSSA D-0-10 Effective piston area Sd 134.780 cm2 DC resistance of voice coil Re 7.350 Ohm Mechanical Q factor Qms 3.775 Electrical Q factor Qes 0.656 Total Q factor Qts 0.559 Voice coil inductance Le 0.518 Equivalent volume Vas 48.917 l Moving mass (including air load) Mms 8.341 g Suspension compliance Cms 1917.214 uM/Newton Force factor Bl 4.836 Tm Maximum linear displacement Xmax5) 6.4 mm
