New Old stock

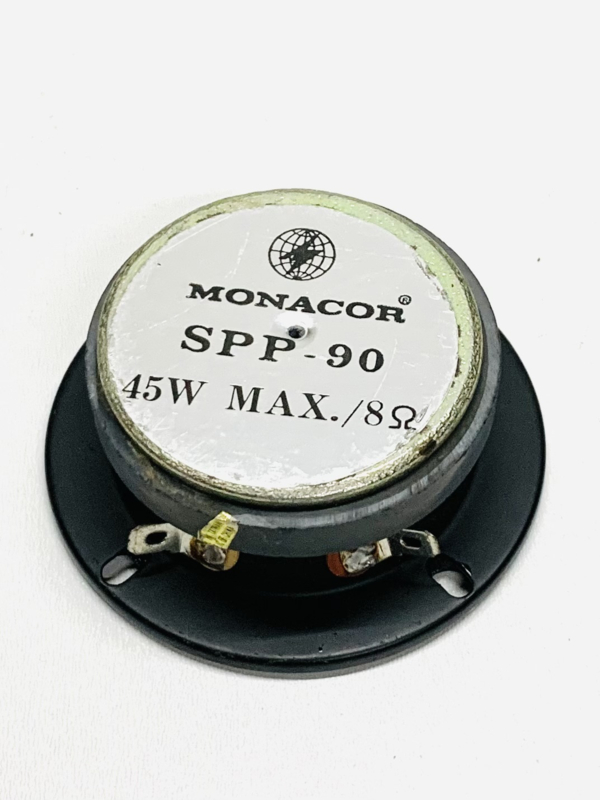

MONACOR SPP-90 Tweeter, 22 W, 8 O
| Impedance (Z): | 8 O |
| Frequency range: | 2,000-18,000 Hz |
| Resonant frequency (fs): | 1,000 Hz |
| Power rating (RMS): | 22 W |
| Peak music power output (MAX): | 45 W |
| Sensitivity: | 92 dB/W/m |
| DC resistance (Re): | 6.5 O |
| Voice coil induct. (Le): | 0.1 mH |
| Voice coil diameter: | Ø 15 mm |
| Voice coil former: | aluminium |
| Eff. cone area (Sd): | 23 cm2 |
| Magnet weight: | 85 g |
| Magnet diameter: | Ø 60 mm |
| Mounting cutout: | Ø 61 mm |
| Mounting depth: | 25.7 mm |
| Dimensions: | Ø 78 mm x 30 mm |
| Outside diameter: | Ø 78 mm |
| Width: | Ø 78 mm |
| Depth: | 30 mm |
| Colour: | black |
| Admiss. ambient temp.: | 0-40 °C |
| Weight: | 0.23 kg |
| Packing unit: | 1 |
| Type of speaker: | 3" |
| Packing dimensions (W x H x L): | 0.085 x 0.04 x 0.085 m |
| Gross weight: | 0.24 kg |
| Net weight: | 0.23 kg NR 031 |
