New Old Stock

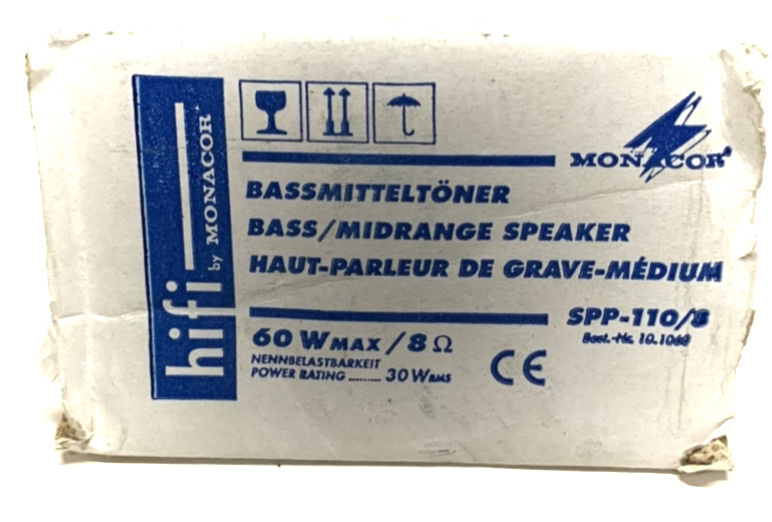

Monacor SPP-110/8
Technische data
| Impedance (Z) | 8 Ω |
| Transmission method | - |
| Frequency range | f3-8,000 Hz |
| Resonant frequency (fs) | 55 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating (RMS) | 30 W |
| Peak music power output (MAX) | 60 W |
| Sensitivity | 90 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 1.89 mm/N |
| Moving mass (Mms) | 4.4 g |
| Mech. Q factor (Qms) | 2.01 |
| Electr. Q factor (Qes) | 0.46 |
| Total Q factor (Qts) | 0.37 |
| Equivalent volume (Vas) | 8 l |
| DC resistance (Re) | 6.5 Ω |
| Force factor (BxL) | 4.60 Tm |
| Voice coil induct. (Le) | 0.4 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 2 mm |
| Eff. cone area (Sd) | 55 cm2 |
| Magnet weight | 280 g |
| Magnet diameter | Ø 80 mm |
| Mounting cutout | Ø 100 mm |
| Mounting depth | 59 mm |
| Mounting hole diameter | Ø 120 mm |
| Hole spacing X-axis | 84.5 mm |
| Hole spacing Y-axis | 84.5 mm |
| Dimensions | 110 x 110 x 60 mm |
| Outside diameter | Ø 135 mm |
| Width | 110 mm |
| Height | 110 mm |
| Depth | 60 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.81 kg |
| Packing unit | 1 |
| Type of speaker | 4" |
