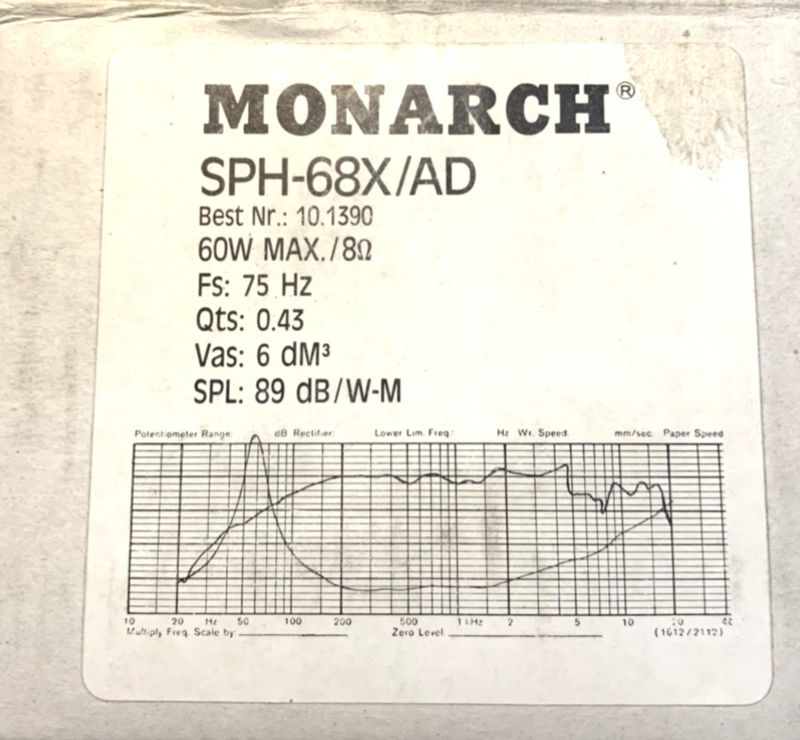

SPH-68X/AD BREEDBAND SPEAKER
| TECHNISCHE GEGEVENS | |
| Impedance (Z) | 8 Ω |
| Transmission method | - |
| Frequency range | f3- 20,000 Hz |
| Resonant frequency (fs) | 60 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | - |
| Power rating | 30 W |
| Peak music power output | 60 W |
| Sensitivity | 89 dB/W/m |
| Max. rated SPL | - |
| Max. voltage | - |
| Radiation angle, horizontal | - |
| Radiation angle, vertical | - |
| Suspension compl. (Cms) | 1.1 mm/N |
| Moving mass (Mms) | 6.5 g |
| Mech. Q factor (Qms) | 3.19 |
| Electr. Q factor (Qes) | 0.49 |
| Total Q factor (Qts) | 0.43 |
| Equivalent volume (Vas) | 9.7 l |
| DC resistance (Re) | 6.5 Ω |
| Force factor (BxL) | 5.7 Tm |
| Voice coil induct. (Le) | 0.5 mH |
| Voice coil diameter | 25.5 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 1 mm |
| Eff. cone area (Sd) | 80 cm2 |
| Magnet weight | 370 g |
| Magnet diameter | Ø 100 mm |
| Mounting cutout | Ø 122 mm |
| Mounting depth | 70 mm |
| Mounting hole diameter | - |
| Hole spacing X-axis | - |
| Hole spacing Y-axis | - |

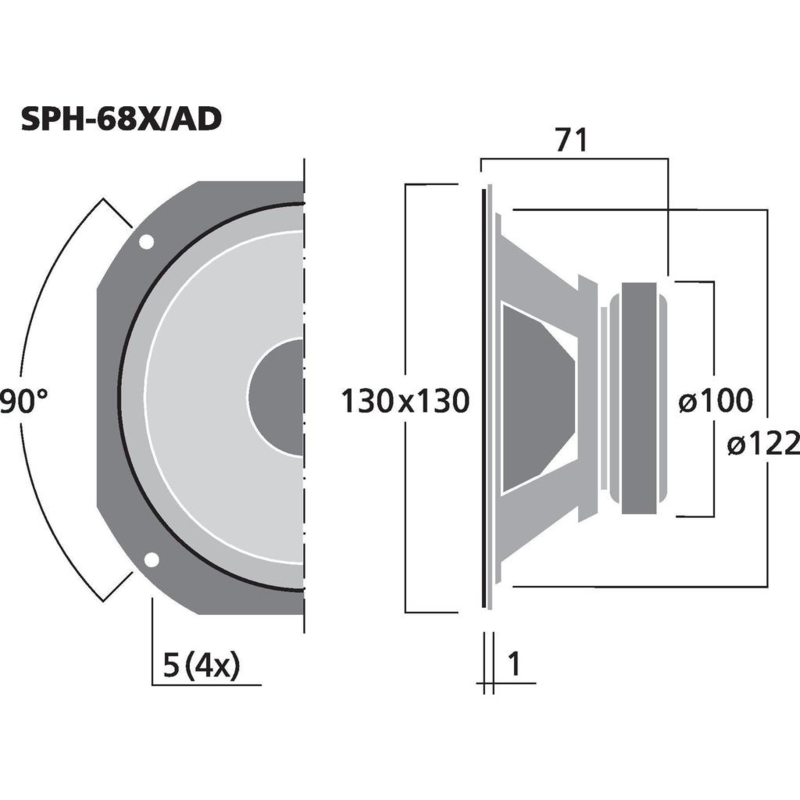

| Dimensions | 130 x 130 x 71 mm |
| Outside diameter | - |
| Width | 130 mm |
| Height | 130 mm |
| Depth | 71 mm |
| Protective class | - |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.1 kg |
| Packing unit | 1 |
| Type of speaker | 5" |
(gebruikt speakers kunnen niet ruilen of retour sturen )
